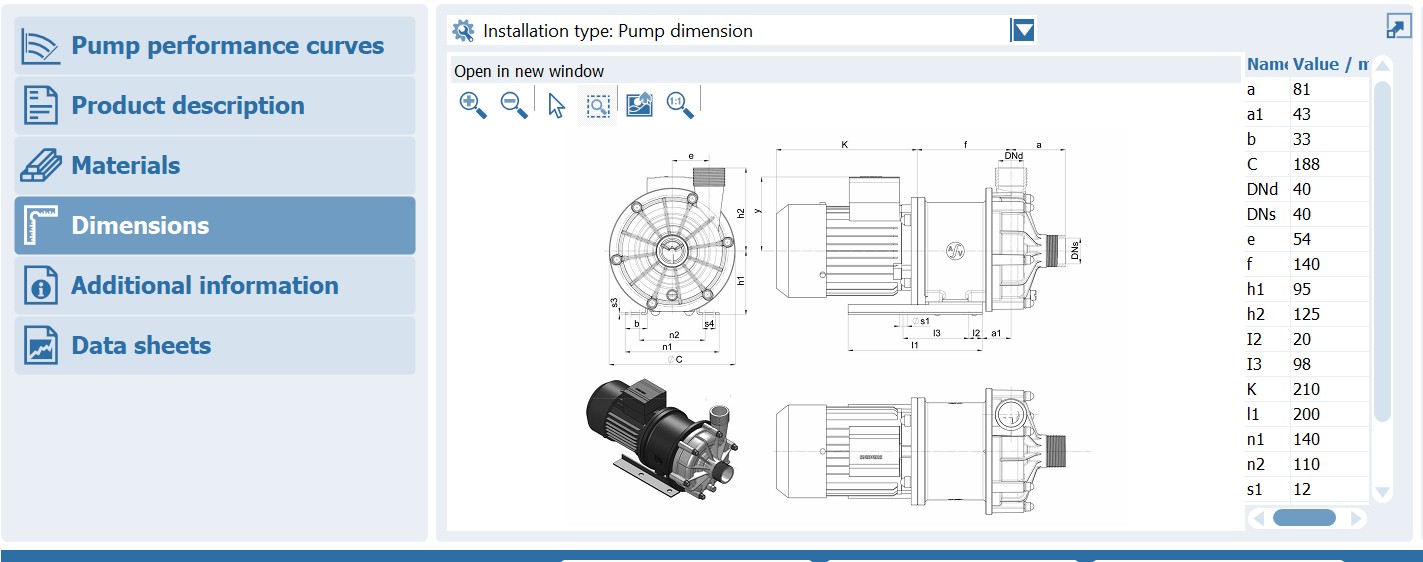

The dimensions of the different components can be viewed in the dimensions section.
First, an area is selected on the left side, after which the dimension drawing, if available, appears in the center of the view. The corresponding dimension list is displayed in the upper right area.
The preview area also contains buttons with the following functions:
|
Zoom in This button enlarges the preview image incrementally. |
|
Zoom Out This button gradually reduces the preview size. |
|
Select |
|
Zoom When this button is active, and thus in zoom mode, you can draw a frame around the area you want to zoom in on. The frame has the same aspect ratio as the available display window. Clicking the left mouse button undoes the zoom action.
|
|
Download file This allows you to save the graphic file.
|
|
Full Screen This button displays the dimension drawing in full screen mode.
|
