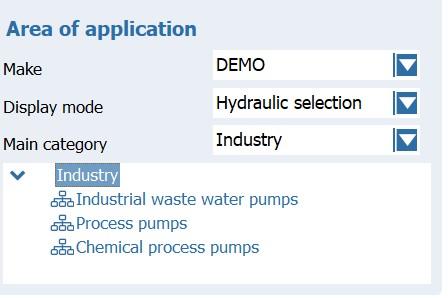

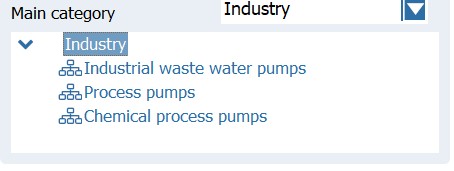

The first step in the hydraulic selection involves defining the application area and pump series to be used for the search. The application area tree is displayed in the top left-hand area of the screen. The default display format is the hydraulic selection.

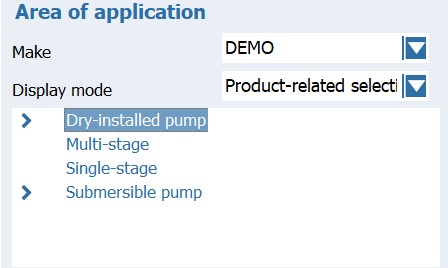

If the other display forms have been maintained, you can also choose between the display forms Design guide and Product-related selection via the Display combo box.

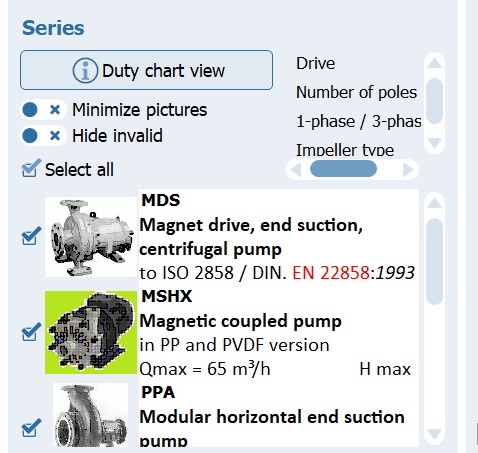

The pump series belonging to the selected application area are displayed in the Series area.
In the selection area under Filter, various parameters can be defined according to the specifications of the application area, which can be used to filter the pump selection. The filters for the drive (frequency) and the number of pole pairs are always available here by default.
With the Minimize images option, the series images can be reduced to pictograms, which provides a better overview of large lists.
The Hide invalid option essentially relates to the filter specifications. All series that do not meet the specifications are displayed in red in the series list. These series can be hidden by activating the option.
The Map overview button opens a dialog in which a graphical overview of the maps of the selected pump series appears.
