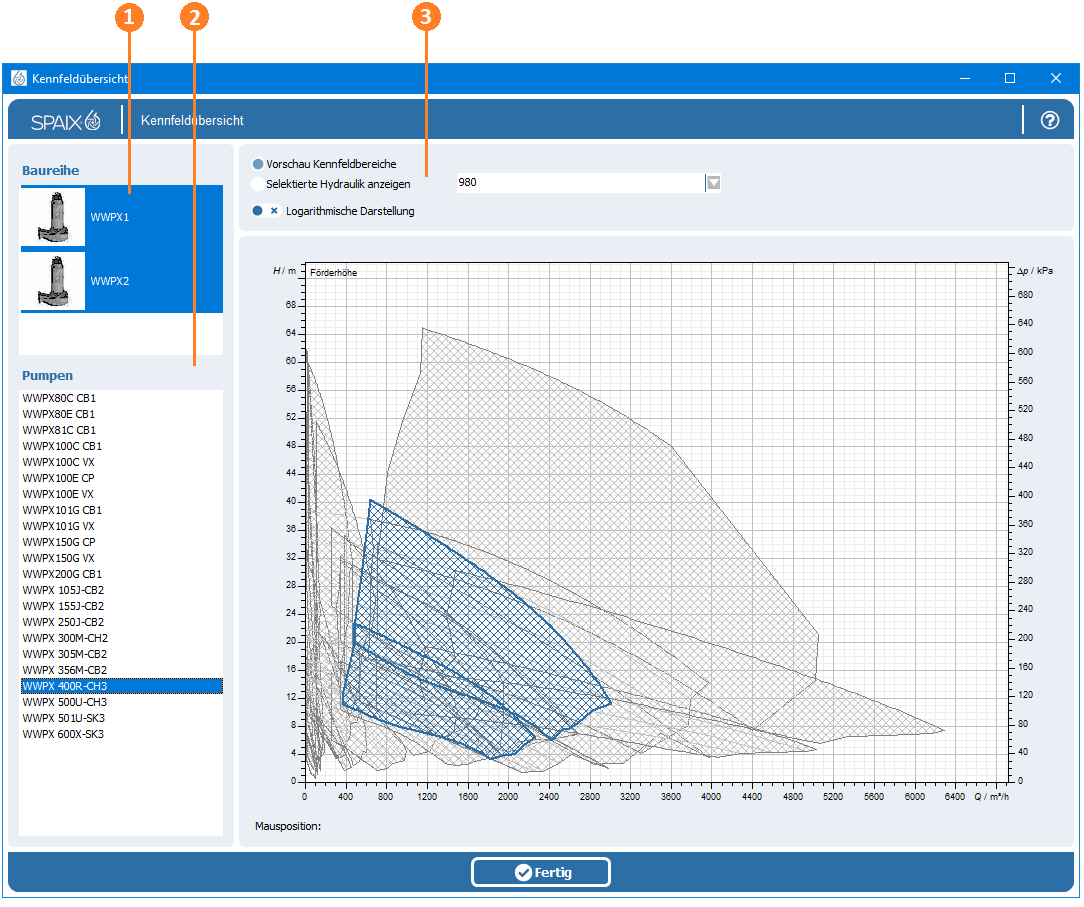

This dialog provides an overview of the characteristic diagrams of the selected pump series.
The series whose maps are to be displayed are selected in the top left-hand area.
Below this is the list of pumps belonging to the selected series.
The diagram preview is displayed in the diagram area, which takes up the main part of the dialog. If operating points have already been specified in advance, these are displayed in the diagram. The option button can be used to specify whether the axes of the diagram should be displayed in logarithmic form.
You can choose between two display types for the diagram:

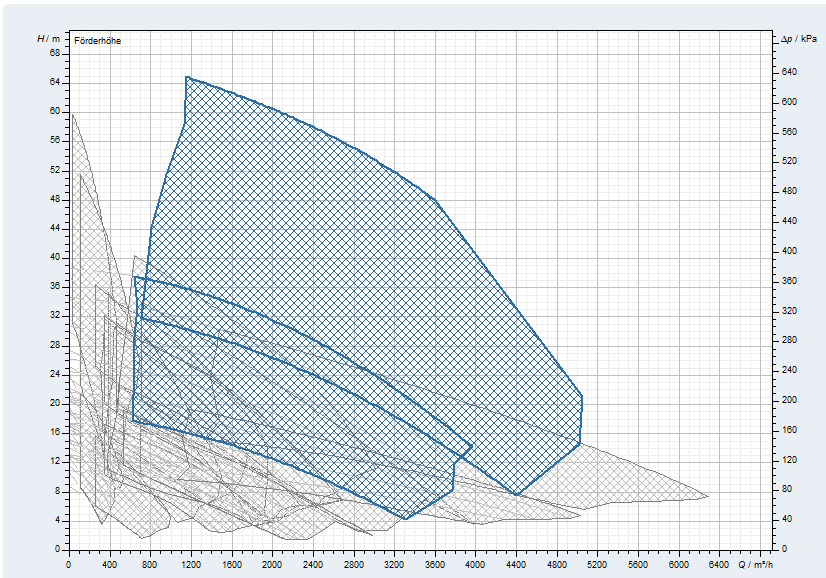

Preview map ranges
If this option is selected, the Q-H diagrams of all pumps in the selected series are displayed. The map of the currently selected pump is highlighted in color.

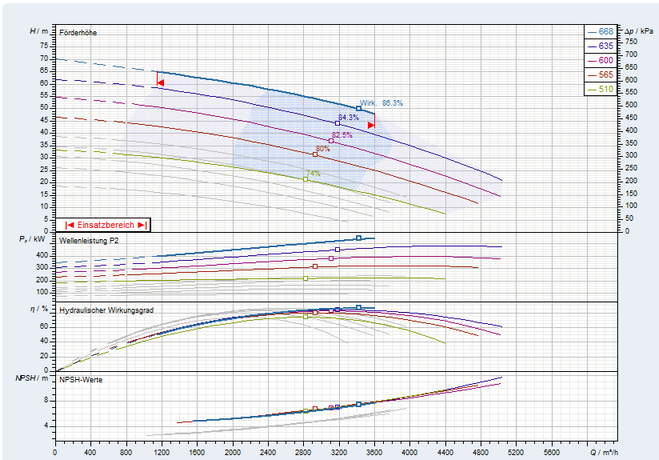

Show selected hydraulics
This option is selected to display the complete hydraulics of the currently selected pump with all available diagram parts. The current mouse position is shown below the diagram if the mouse pointer is moving within the diagram.
