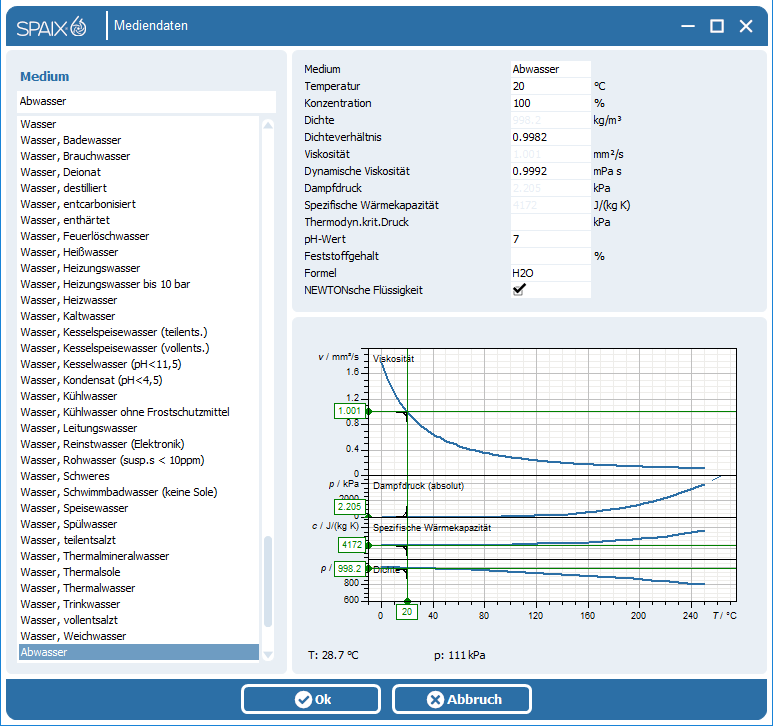

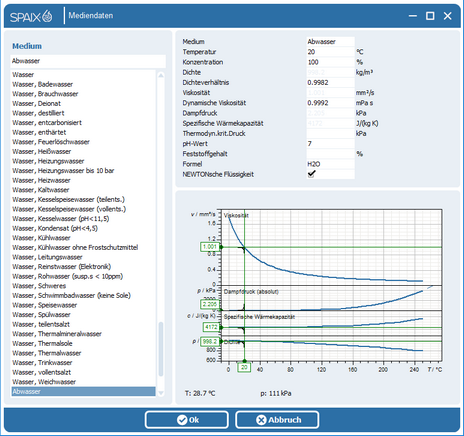

In the Media Data dialog you can add pumped media to the pump selection.
◻Medium: The left-hand side of the dialog contains a list of the media available in the database. You can search for specific media using the text field by entering the corresponding name.
◻Media Data: The Media Data section on the right side of the dialog lists the physical properties relevant to the selected medium. If the temperature (reference value) is changed, the other values are adjusted accordingly, provided that corresponding values for the specified temperature exist in the database. If this is not the case, these can be entered manually in the corresponding fields.
|
If data is entered manually, it is not permanently transferred to the database, but only applies to the active session. |
View: This section contains the graphical representation of the physical properties. Depending on the available data, the following diagram sections are included:
◻Viscosity
◻Vapor Pressure
◻Specific Heat Capacity
◻Density
For your convenience, the diagram displays the individual values relative to the temperature specified above.
