The Optimize section is minimized at the beginning of the session for better clarity. This section can be opened by hovering the mouse pointer over the label. To pin the section, i.e., make it permanently visible, click the pin icon |
in the section header.
|

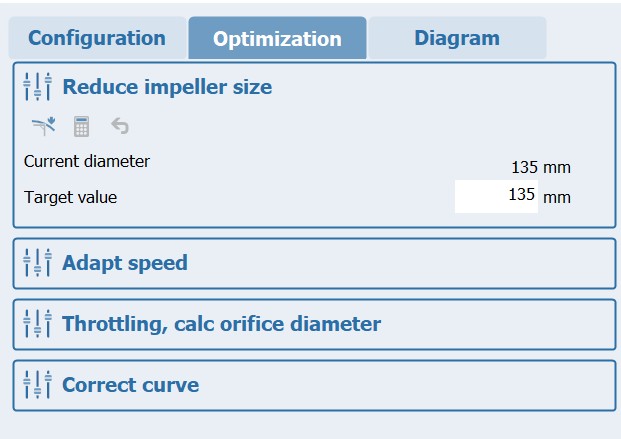

This section offers the option of adapting the characteristic curves to specified operating points. Depending on the pump type, different methods may be available.
The following options are available:
◻Trim the impeller (of single- or multi-stage pumps) ◻Adjust the speed ◻Conversion factor ◻Calculate the blade angle ◻Multiply the curve by the factor ◻Throttling
Three functions are available for each optimization method.
◻Adjust to the operating point ◻Calculate characteristic curves for the entered values ◻Reset (only active if optimization has been performed previously)
If the pump supports frequency converters, a speed map can also be created.
|
