The Performance Curve Points area is minimized at the beginning of the session for better clarity. This area can be opened by hovering the mouse pointer over the label. To pin the area, i.e., make it permanently visible, click the pin icon |
in the respective area header.
The table also lists the operating points, if already specified.

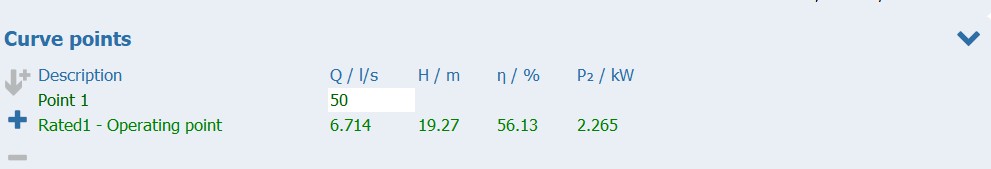

Additional points can be added using the plus button. This creates a new row in the table where the flow rate value can be entered. The remaining values are calculated automatically and always refer to the currently active characteristic curve.
If the Show Curve Points option has been enabled in the Diagram Settings menu, the corresponding data for the additionally displayed point will be displayed in the first row.
