Open dialog

<< Zum Anzeigen des Inhaltsverzeichnisses anklicken >>

Navigation:  The start window > Burger menu and header >

Open dialog

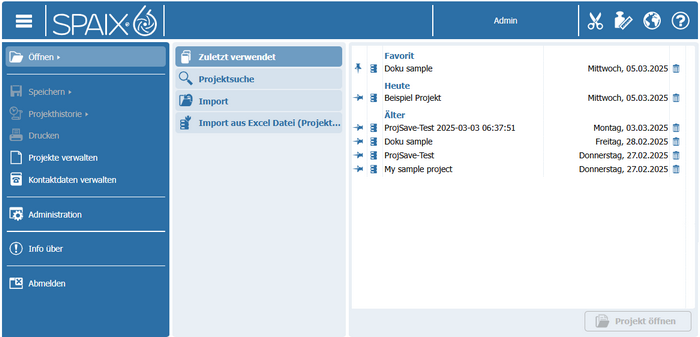

The Open dialog contains options for searching for and importing projects. A list of recently used projects is also displayed, allowing quick access to them.



hmfile_hash_c443a455

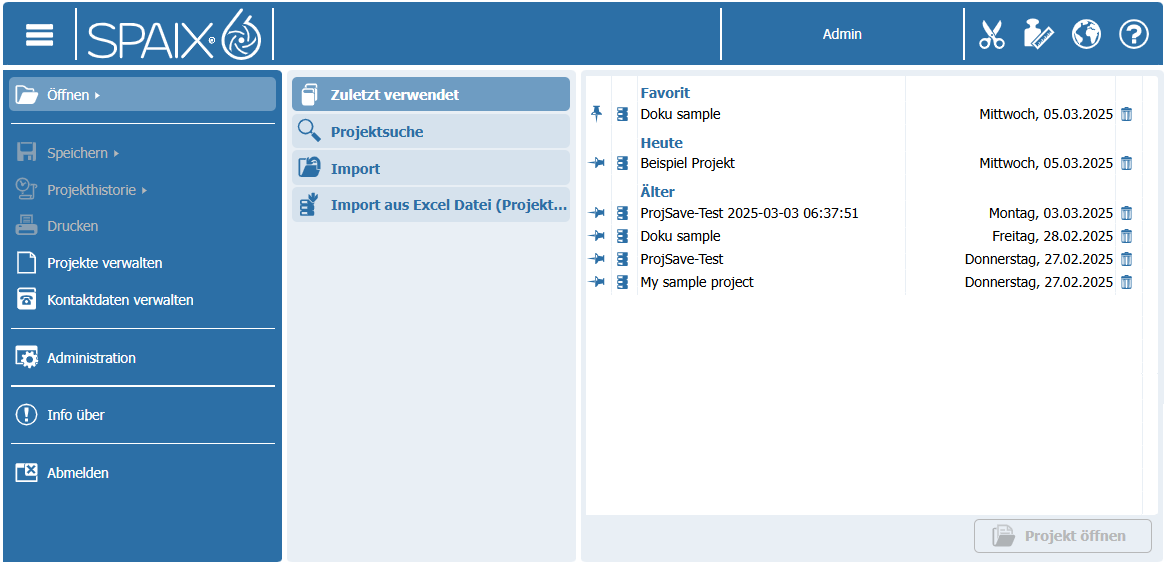

The Open dialog contains the following buttons:

Screenshot 2025-06-27 112035

In the Last used section, the projects last edited by the user currently logged in are listed in descending order by date/time of last editing. Projects can be permanently pinned to the top of the list as favorites using the pin icon. PinThe list of projects is subdivided into Favorite, Today and Older. Projects that can no longer be found, for example if projects have been deleted are grayed out. Projects can be removed from the list using the delete icon. Löschen_



Burgermenü_Öffnen_Zuletzte verwendet_DatenQuelleIcons

The icons in the second column of the most recently used projects indicate whether a project was saved in a file (CEF, CEFX) or in a database (SQL, Access).

Burgermenü_Öffnen_Import

Projects can be imported from CEF or CEFX (CEF compressed as Zip) files using the import button.

Screenshot 2025-06-27 112113

All projects to which the logged-in user has access are listed in the project search area. Various filter settings make it possible to narrow down the selection.

Screenshot 2025-07-03 110913

Basic project data can be imported from Excel files using the corresponding Import from Excel file (project adapter) button.

This option is only available if the Spaix ProjectAdapter XLS add-on module is licensed and all configuration requirements are met.

Screenshot 2025-06-27 112134

A selected project in the list of recently used projects can be opened either by double-clicking on it or by selecting it and pressing the Open project button.
